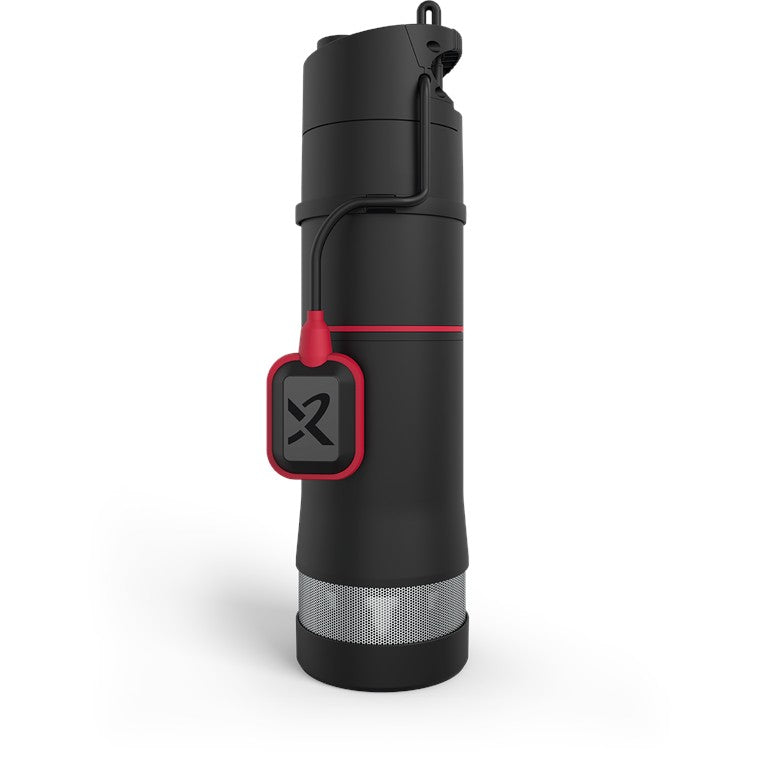

SBA submersible house pump
Short description
All in one submersible multistage booster pump for domestic water supply. Integrated control delivers automatic pressure boosting with silent operation inside rainwater tanks.
Why We Like It
Fully submerged in your tank so it is silent and does not clutter up your outdoor space. Simple install and as with everything Grundfos, reliable.
Pump size
- Small to medium house - Single storey - Up to 3 outlets
- Medium house with multiple storeys and bathrooms - Up to 4 outlets
Pump size guide
Install type
- Submerged – Pump designed to be submerged in water typically inside a tank or bore, for quiet, efficient performance with zero priming required.
Install type guide
Free Shipping on Orders over $300
No code needed — just add items to your cart and head to checkout!
Warranty Period
This pump is backed by a warranty period of 2 Years. Contact us if you need help confirming coverage or making a claim.
More information
More information
The Grundfos SBA is a complete submersible pressure boosting solution designed for domestic rainwater and clean water applications. With the control unit built directly into the pump, there is no need for an external controller or pressure switch.
Installed directly inside the tank, the SBA operates silently and automatically starts and stops based on household demand. It is ideal for homes wanting reliable pressure boosting without pump noise or complex installations.
Ideal for
- Rainwater tank pressure boosting
- Household water supply
- Garden irrigation
- Toilet and laundry supply
- Quiet residential environments
The Grundfos SBA is an all in one submersible multistage pressure booster pump designed specifically for domestic water supply applications.
Unlike traditional above ground booster systems, the SBA is installed directly inside the water tank, making it virtually silent during operation. The integrated control unit automatically starts and stops the pump in response to water demand and includes built in dry run protection and thermal overload protection for long term reliability.
Constructed from corrosion resistant composite and stainless steel materials, the SBA is designed for continuous submerged operation in clean water. Stainless steel strainers prevent large particles from entering the pump, while optional floating suction kits allow clean water to be drawn from just below the surface where sediment is minimal.
The SBA is approved for use with drinking water and is ideally suited to rainwater harvesting systems supplying gardens, toilets, washing machines, and general household use.
Available with fixed or floating strainers and optional float switches, the SBA range can be configured to suit a wide range of tank and installation layouts.

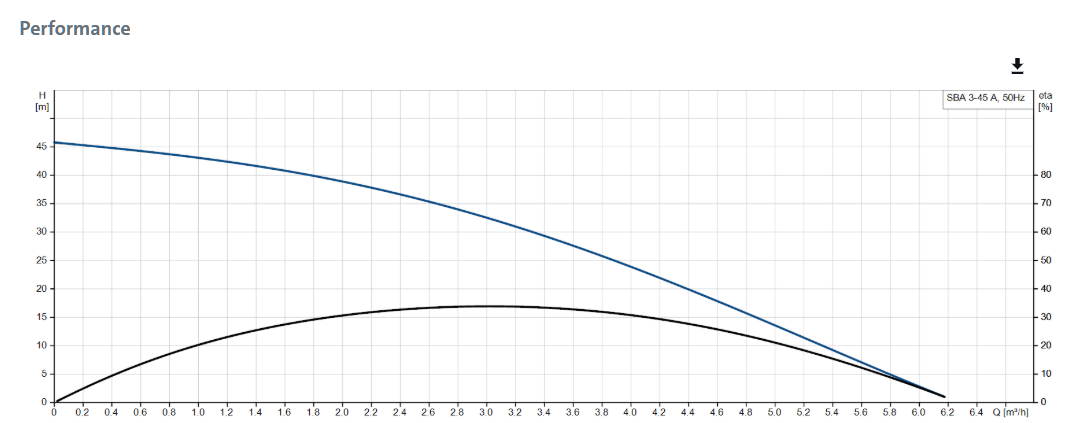

For full technical specifications, performance data, and model selection guidance, refer to the manufacturer documentation
- KW rating - 0.55
- Head - Rated head 45m
- Flow - Rated flow 50lpm
- Motor phase type - Single Phase
