Davey HP Series Horizontal Pressure Pump
Short description
The Davey HP Series is a compact, reliable, and quiet pressure system ideal for household water supply and garden use. Paired with a Torrium2 controller, it delivers strong and steady water pressure..
Why We Like It:
A proven performer for Kiwi homes and our budget go to for single storey homes. Simple to install, easy to service, and thas been on the market for many years. A solid all rounder for anyone needing dependable pressure on a budget.
Install type
- Flooded Suction - Designed to be installed next to the water source with little or no lift. Ideal for install next to a tank.
Install type guide
Taxes included.
Shipping calculated at checkout.
Free Shipping on Orders over $300
No code needed — just add items to your cart and head to checkout!
Warranty Period
This pump is backed by a warranty period of 2 Years. Contact us if you need help confirming coverage or making a claim.
More information
More information
This pump supplies clean water at steady pressure for homes. It is designed for everyday household water supply. Ideal for:
- Pumping from water storage tank
- Pumping rain water to garden
- From water source direct to house
- Single story houses or low head applications
Great performance for single story homes.
Models in this range
| Model |
Motor kW |
Rated flow |
Max pressure |
Inlet / outlet |
| HP65-06 |
0.60 |
100 lpm |
330 kPa |
1 1/4 inch F / 1 inch M |
| HP85-08 |
0.80 |
140 lpm |
330 kPa |
1 1/4 inch F / 1 inch M |
Not sure which one fits your place? Call us on 07 863 8064 and we will size it with you.
Full Description
Davey HP Series Pressure Systems
The Davey HP Series Pressure Systems are compact and reliable home pressure systems designed for pumping clean water for household and light garden applications. They are well suited to domestic water supply, irrigation, washing systems, and pressure boosting where consistent flow and dependable operation are required.

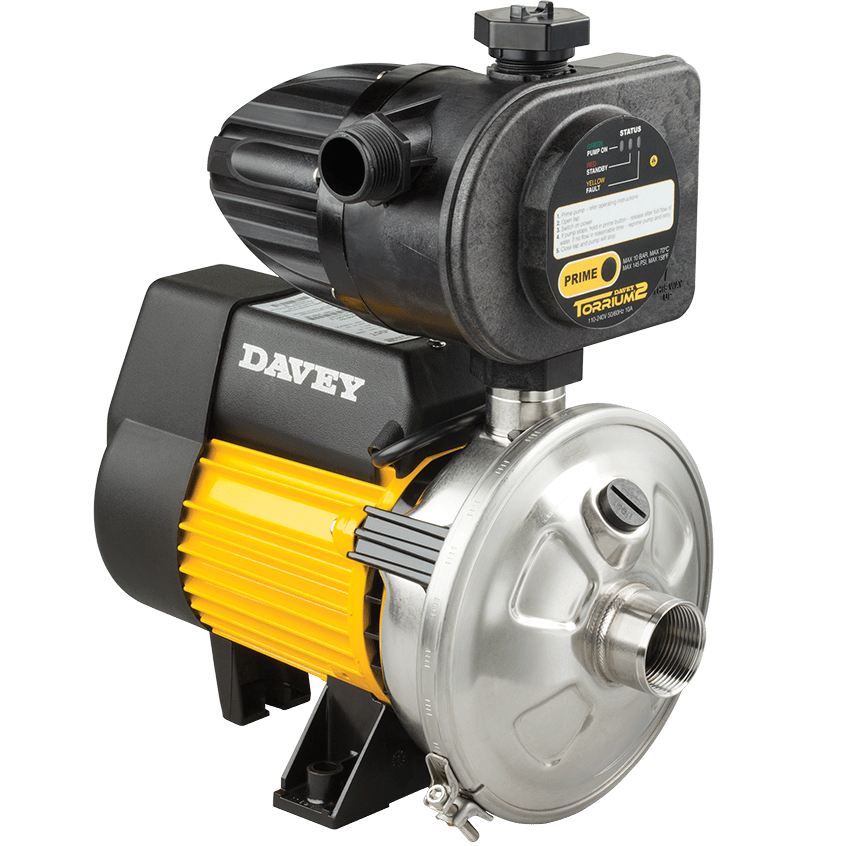

Each system consists of a horizontal HP pressure pump paired with a Torrium2 controller. The controller is supplied electrically connected to the pump motor, allowing for simple installation without specialist trade work. This combination delivers strong water pressure with constant flow control, providing comfortable showers and smooth water delivery without pump cycling.
The HP Series is designed to be compact and quiet, making it easy to install in tight spaces while remaining unobtrusive during operation. All components in contact with water are manufactured from safe, corrosion resistant materials, allowing the system to be used across a range of water qualities while maintaining water quality confidence.
The pump features a reliable twin stage impeller design with stainless steel construction, offering durability and the ability to handle water temperatures up to 50 degrees. A high quality carbon and ceramic mechanical seal ensures reliable starting and long service life.
The motor is a totally enclosed fan cooled design constructed from corrosion resistant materials. It carries an IP55 protection rating and Class F insulation, with built in thermal overload protection and automatic reset. The motor and pump are designed for frequent starts, making them suitable for everyday household use.
The HP Series is manufactured under ISO 9001 quality standards and ISO 14001 environmental standards, ensuring consistent build quality and long term reliability. All systems are backed by Davey’s local support network in New Zealand.
Available models
HP45 05T
HP65 06T
HP85 08T

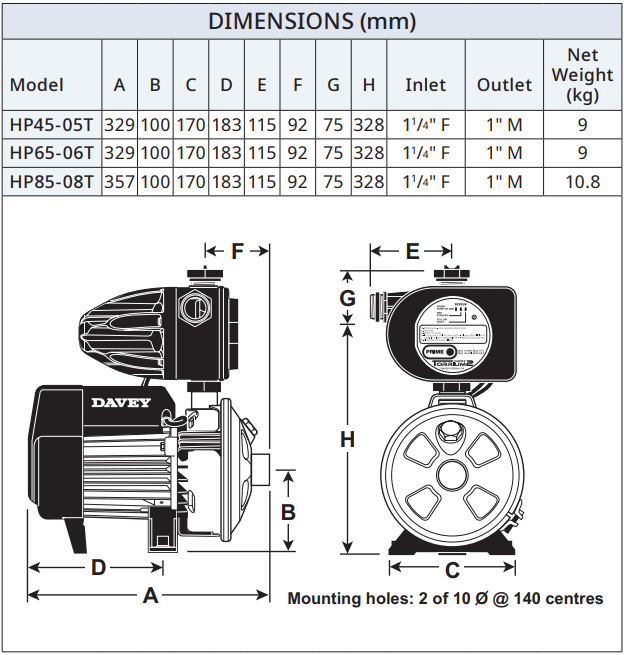

Please refer to the product documentation for full technical specifications, operating limits, and installation requirements.

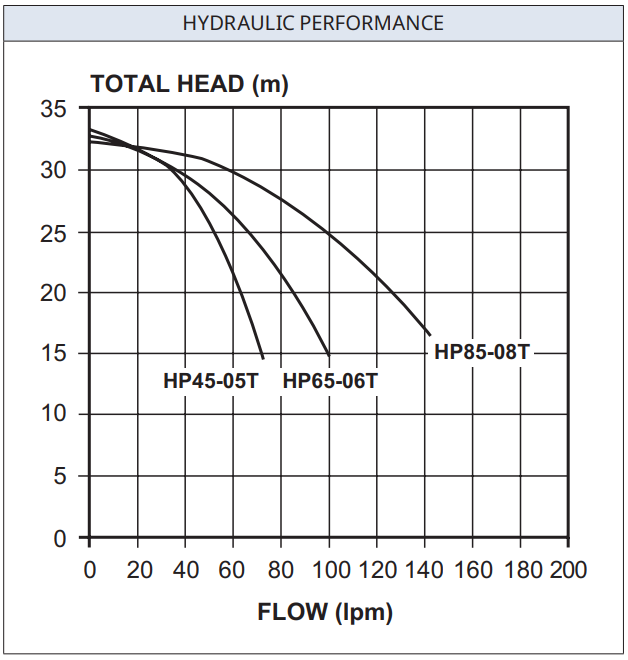

- KW rating - Motor 0.60 kW to 0.80 kW
- Head - Max Head 33m
- Flow - Rated flow 100 lpm to 140 lpm
- Motor phase type - Single Phase
