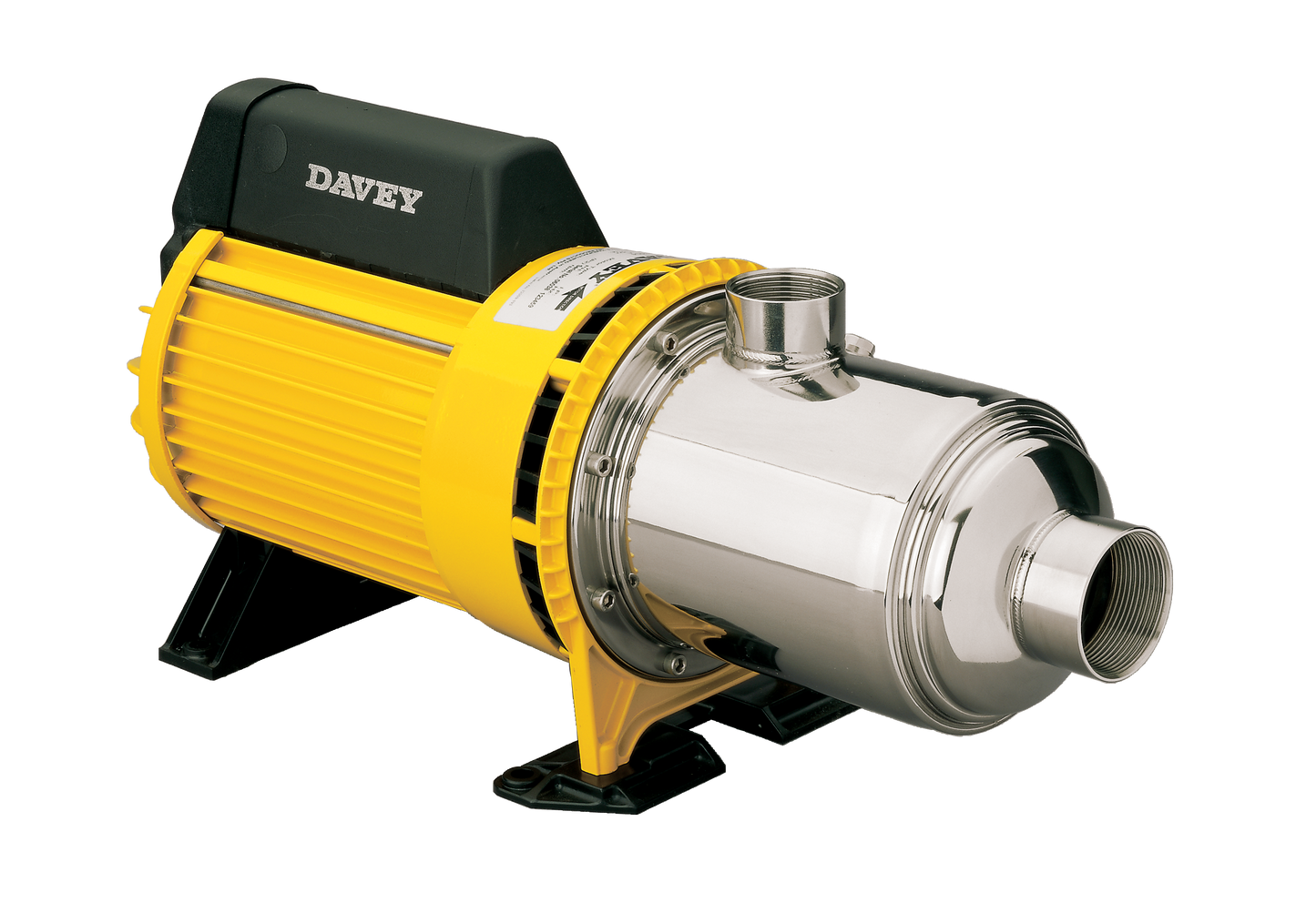

Davey HM Series Horizontal Multistage Pressure Pump
Short description
The Davey HM Series is a compact, all stainless steel multistage pump built for high pressure water supply in residential, commercial, and light industrial setups.
Why We Like It
It’s versatile, tough, and efficient with all stainless construction, quiet operation, and serious pressure handling. We have seen these pumps in high workload situations still going strong after 15 years+.
Why We Like It
It’s versatile, tough, and efficient—with stainless construction, quiet operation, and serious pressure handling. A solid choice when you need reliable pressure in larger or demanding installs. In the right situation, you can't go wrong with an HM
Pump size
- Small to medium house - Single storey - Up to 3 outlets
- Medium house with multiple storeys and bathrooms - Up to 4 outlets
Pump size guide
Install type
- Flooded Suction - Designed to be installed next to the water source with little or no lift. Ideal for install next to a tank.
Install type guide
Taxes included.
Shipping calculated at checkout.
Free Shipping on Orders over $300
No code needed — just add items to your cart and head to checkout!
Warranty Period
This pump is backed by a warranty period of 2 Years. Contact us if you need help confirming coverage or making a claim.
More information
More information
This pump supplies clean water from a tank at steady pressure for homes, lifestyle properties, and light commercial use. It delivers reliable water flow, runs quietly, and is built for long term operation in New Zealand conditions, with local parts, service, and warranty support.
- Designed for tank water supply and pressure boosting
- Provides steady pressure at taps and outlets
- Quiet and reliable for everyday use
- Australian designed and built with local service warranty and backup
Controller and operation options
- When paired with a Torrium controller, the pump is fully automatic and protected from dry running, overload, and common faults

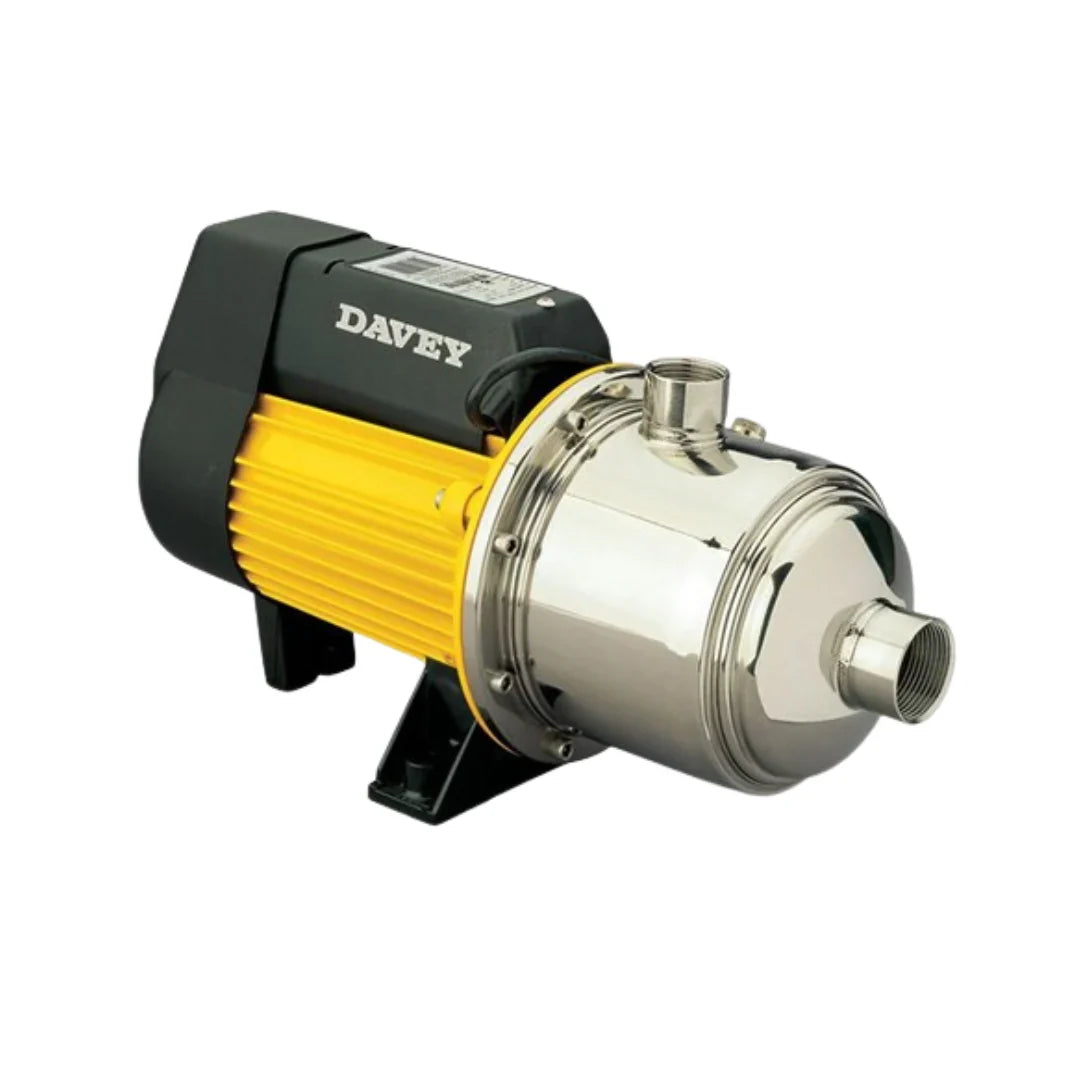

- The bare pump includes a power cord and can be operated manually using an on off switch
Models in this range
| Model |
Motor kW |
Rated flow |
Max pressure |
Inlet / outlet |
| HM60-06 |
0.58 |
60 lpm |
460 kPa |
1 1/4 inch F / 1 inch M |
| HM90-08 |
0.78 |
90 lpm |
460 kPa |
1 1/4 inch F / 1 inch M |

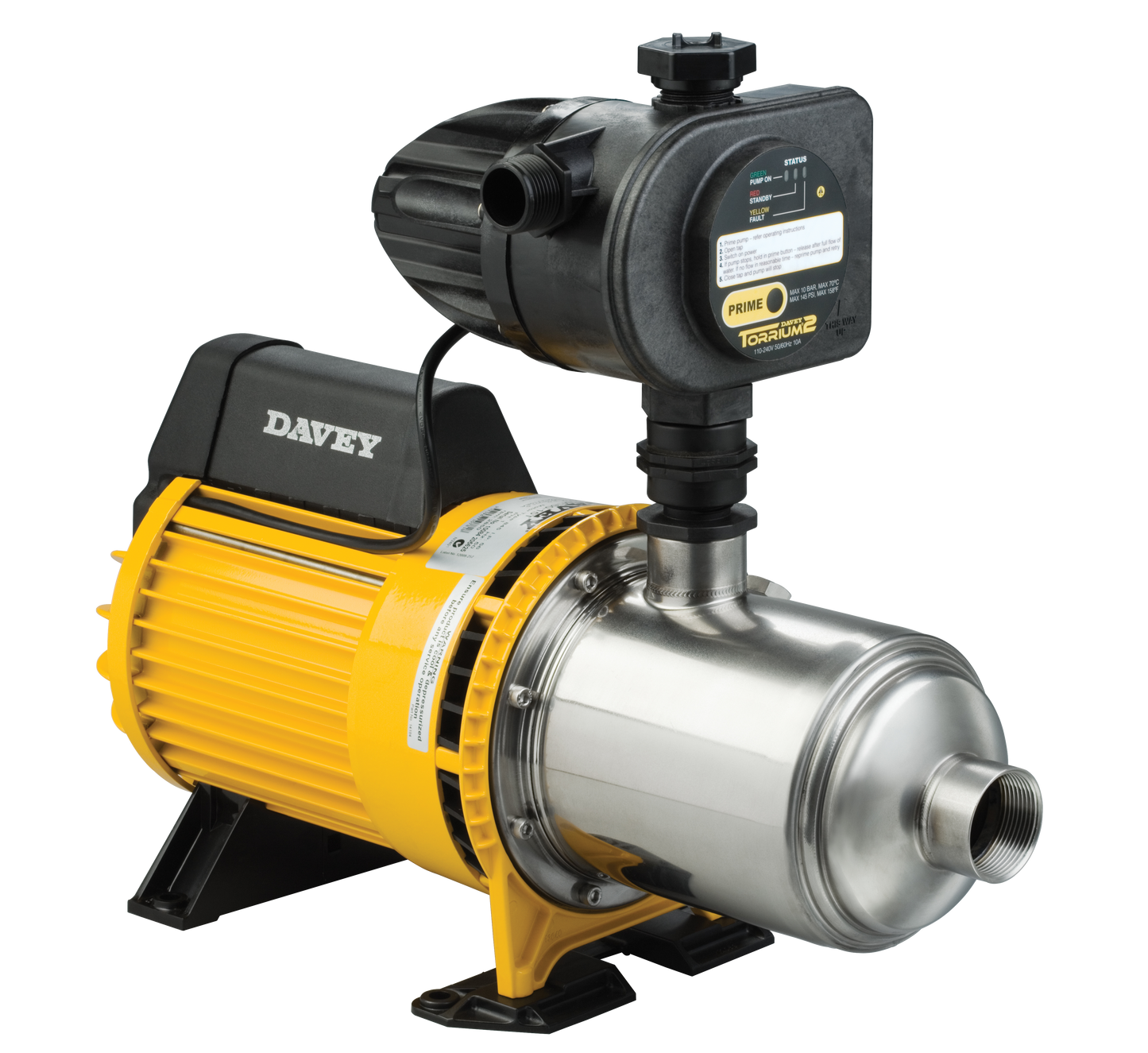

| HM160-15 |
1.50 |
250 lpm |
460 kPa |
1 1/2 inch F / 1 inch M |
Not sure which one fits your place? Call us on 07 863 8064 and we will size it with you.

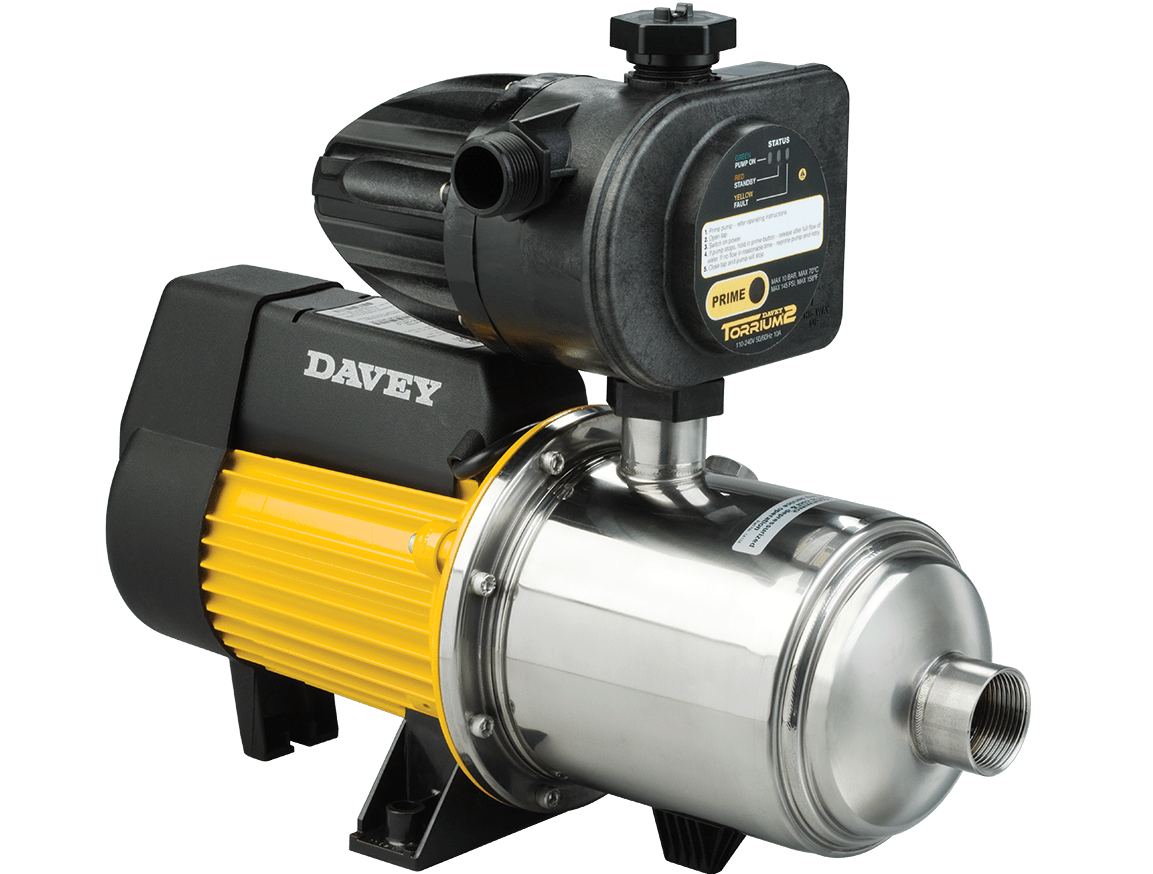

Davey HM Horizontal Multistage Pumps with Torrium2
The Davey HM Horizontal Series with Torrium2 is a compact and economical multistage pump system designed for high pressure water supply across a wide range of residential, commercial, and light industrial applications. With maximum flow rates up to 250 litres per minute and head heights up to 69 metres, the HM range delivers strong, reliable performance for both hot and cold water systems.
Featuring axial suction and vertical discharge, the HM Series has a compact footprint that allows for flexible installation in tight spaces. When paired with the Torrium2 controller, the pump operates as a fully automatic pressure system, providing consistent flow and pressure while protecting the pump from dry running.
The HM range is constructed with all stainless steel pump components, offering excellent corrosion and abrasion resistance, low noise operation, and reduced power consumption. Air purging valves and stage porting make priming easier and reduce the risk of air related performance issues. Impellers are mounted directly onto an extended motor shaft, maximising efficiency per stage and improving wear resistance for long motor and pump life.
A complete stainless steel casing is secured to the motor bracket at multiple points with an o ring seal to ensure effective sealing and durability. Each pump is fitted with a totally enclosed fan cooled electric motor with built in thermal overload protection and automatic reset for added reliability.
The HM Series is certified to AS NZS 4020 standards, making it suitable for potable water applications where water taste, appearance, and safety are critical.
Typical applications include
Irrigation and turf watering
Washdown systems
Filling and emptying tanks or reservoirs
Commercial washing
Water treatment applications such as filtration or demineralisation
Available models
- HM60-06T, up to 60 lpm at 460 kPa
- HM60-08T, up to 80 lpm at 575 kPa
- HM60-10T, up to 60 lpm at 690 kPa
- HM90-08T, up to 90 lpm at 460 kPa
- HM90-11T, up to 120 lpm at 575 kPa
- HM90-13T, up to 90 lpm at 690 kPa
- HM160-15T, up to 250 lpm at 460 kPa
- HM160-19T, up to 250 lpm at 600 kPa

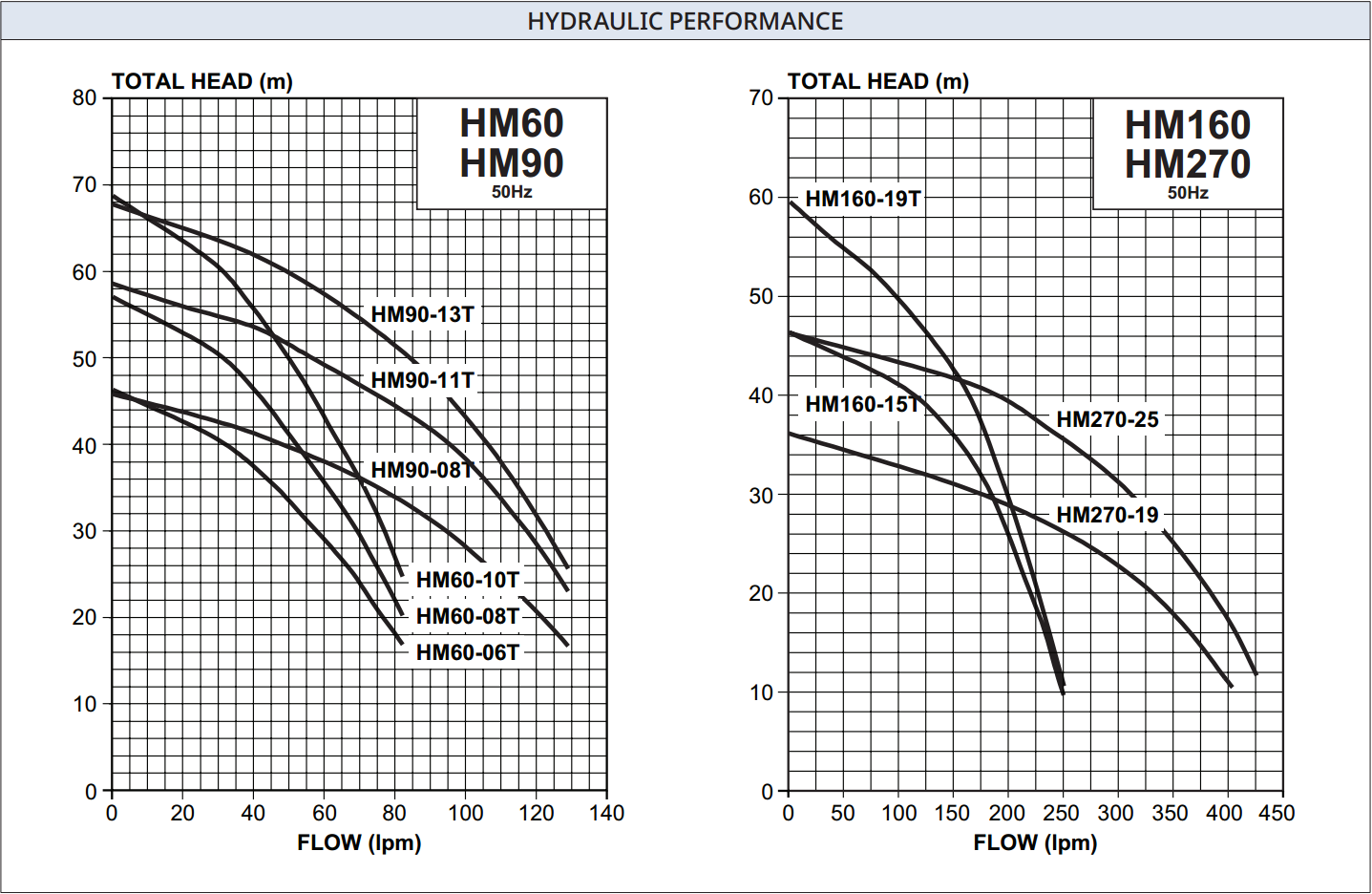

Please refer to the product documentation for full technical specifications and performance curves.
- KW rating - Motor 0.58 kW to 1.50 kW
- Head - Max Head 46m
- Flow - Rated flow 60 lpm to 250 lpm
- Motor phase type - Single Phase
